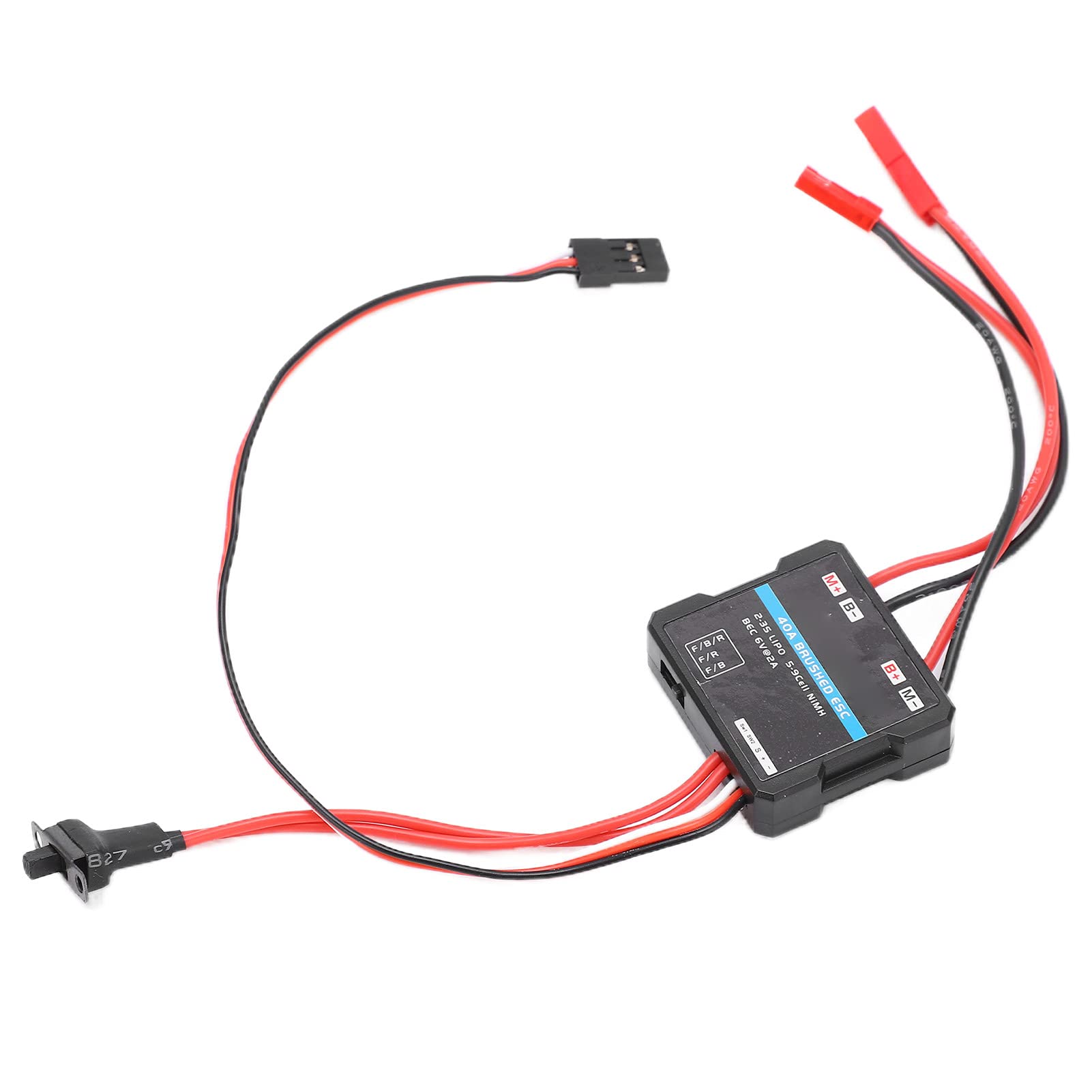

VGEBY 40A Waterproof Brushed ESC Electronic Speed Controller for 1/16 1/18 RC Cars - Upgrade Accessories for RC Car Models (Perfect for Off-Road Racing & Crawler Performance)

How to Use: Setting method: Use a toggle switch to set the operating mode. The uppermost left is F/B/R, the middle is F/R, and the rightmost upper is F/B. Push the switch to the corresponding position to complete the setting. Specification: Item Type: Electronic Speed Controller Material: Plastic Color: Black Forward: Continuous Current/Peak Current 40A/160A Reverse Direction: Continuous Current/Peak Current 20A/80A Support Voltage Range: 2-3 Lithium Batteries (Lipo) or 5-9 Nickel Metal Hydride (NiMH) Batteries Support: Number of Engines/Ton 2 Lithium Batteries or 6 Nickel Hydrogen: 280, 370 or 380 Size Motor RPM is Lower Than 30000 at 7.2V 3 Lithium Batteries or 9 Nickel Hydrogen: 280, 370 or 380 Size Motor RPM is Lower Than 20000 at 7.2V BEC Output: 2A / 6V (Switching Regulator Mode) Operating Mode: One Way / Two Way / Climbing Applicable Models: For1/16, for 1/18, for Electric House/Denyue/Trolley: Electric House, Denyue, Short Truck, Trolley, Truck, Climbing Car, Tank. Suitable: For WPL, for C24, for C34, for MN, for D90, for MN99S, for MN86s, for G500 RC Car Upgrade Parts Package List: 1 x Electronic Speed Controller 1 x User Manual Note: 1. Due to manual measurement, please allow an deviation of 1‑3mm. 2. The monitor calibration is inconsistent, and the color of the item shown in the photo may be slightly different from the actual object. 3. After the setting is completed, shut down and restart the ESC.

[EASY TO OPERATE] The electronic speed controller adopts the toggle switch setting method, which is simple, clear and easy to operate.

[THREE OPERATING MODES] The three operating modes, namely one way, two way and climbing mode, are suitable for all kinds of RC models.

[EASY TO USE] Adopts automatic throttle stroke adjustment and automatic throttle neutral adjustment design, this 40A brushed ESC is easy to use.

[PROTECTIVE FUNCTION] With the function of lithium battery low voltage protection, automatic battery power test, high temperature protection and other protections.

[SUITABLE FOR] With a wide range of application, suitable for 1/16 RC car, for 1/18 RC car and short truck, trolley, truck, climbing car, tank,etc.
